Pumping Solutions Engineered for Florida’s Demands

Romtec Utilities has long been a trusted name in designing, manufacturing, supplying, and installing custom pump stations across the United States. When working in Florida there is no room for compromise: between high groundwater, flat topography, flood zones, and the state's booming development, every project demands smart, proven, and durable solutions.

Romtec Utilities is understands the unique geographic, environmental, and municipal demands. Our work spans public works, municipal systems, commercial development, and industrial infrastructure. We've provided systems for communities for several locations across the state, including Oviedo, Lake Mary, and Cocoa.

SPOTLIGHT PROJECT

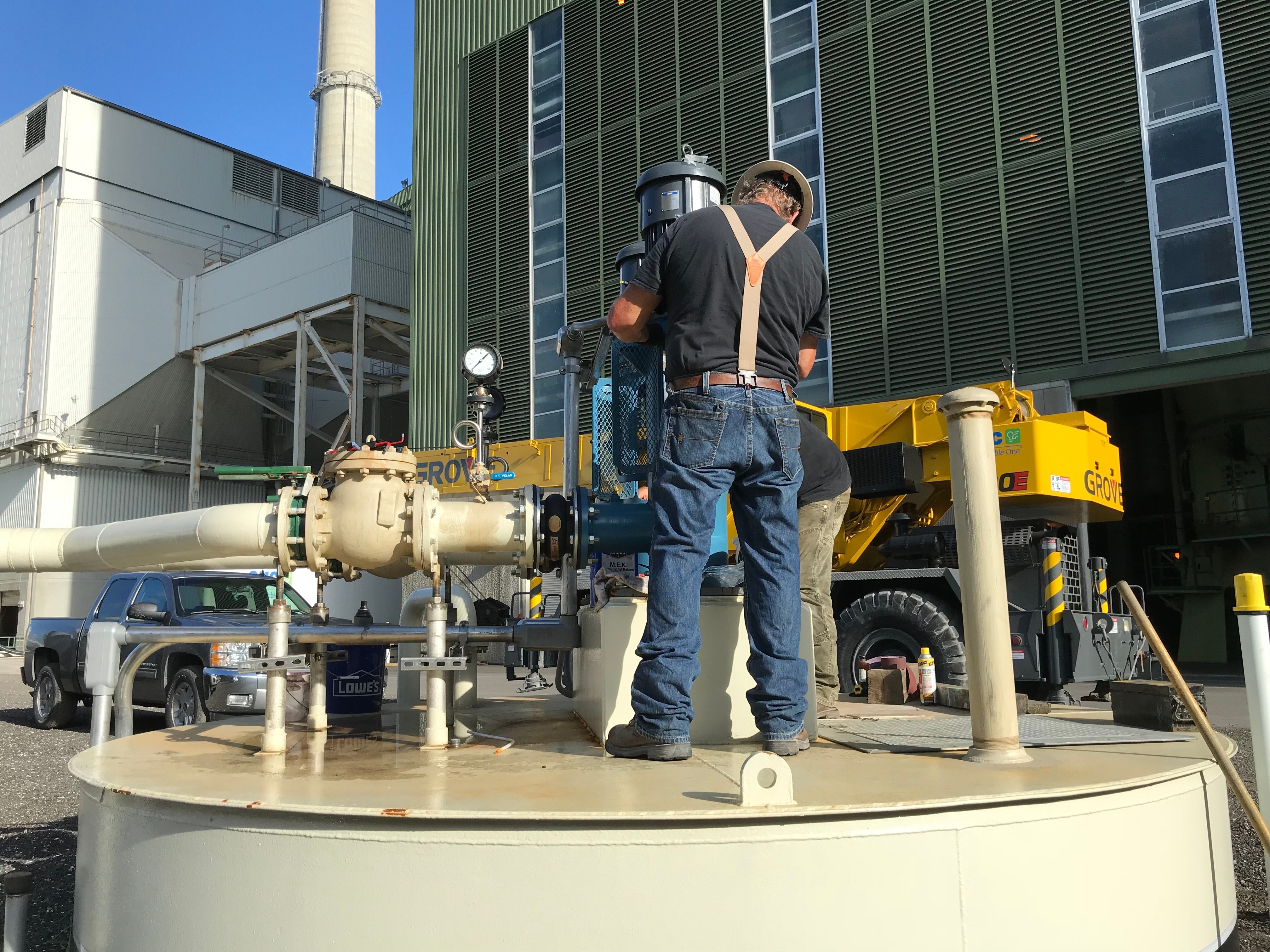

HRSG Blowdown Pump Station for the Orlando Utility Commission

Orlando’s energy infrastructure powers one of the fastest-growing regions in the U.S. The Curtis H. Stanton Energy Center, operated by the Orlando Utilities Commission (OUC), relies on a robust pumping infrastructure to support combined-cycle power generation. Orlando Utilities Commission is the second-largest municipal utility in Florida. The power facility is a 1,951.0-megawatt (MW) coal- and gas-fired power plant that provides electricity for the greater Orlando area.

When OUC needed reliable systems to recirculate near-boiling HRSG (Heat Recovery Steam Generator) blowdown water, they turned to Romtec Utilities. What followed was a masterclass in advanced engineering and full-service project execution.

Specifics

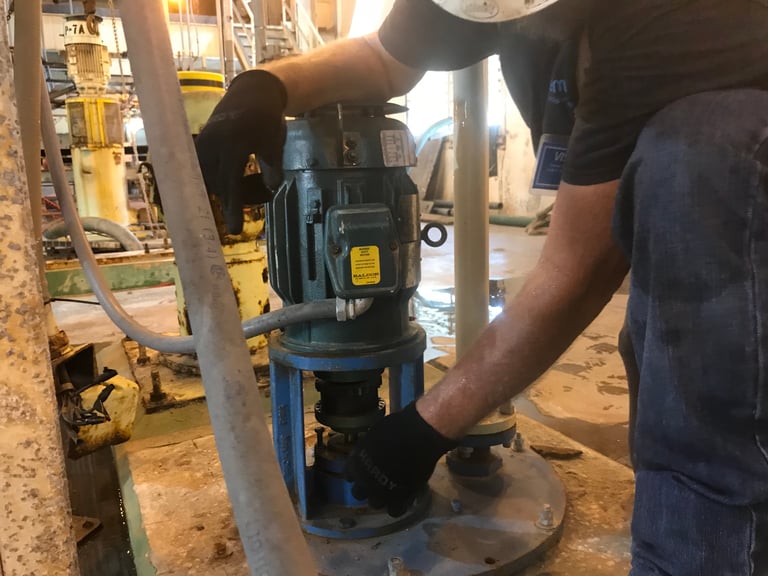

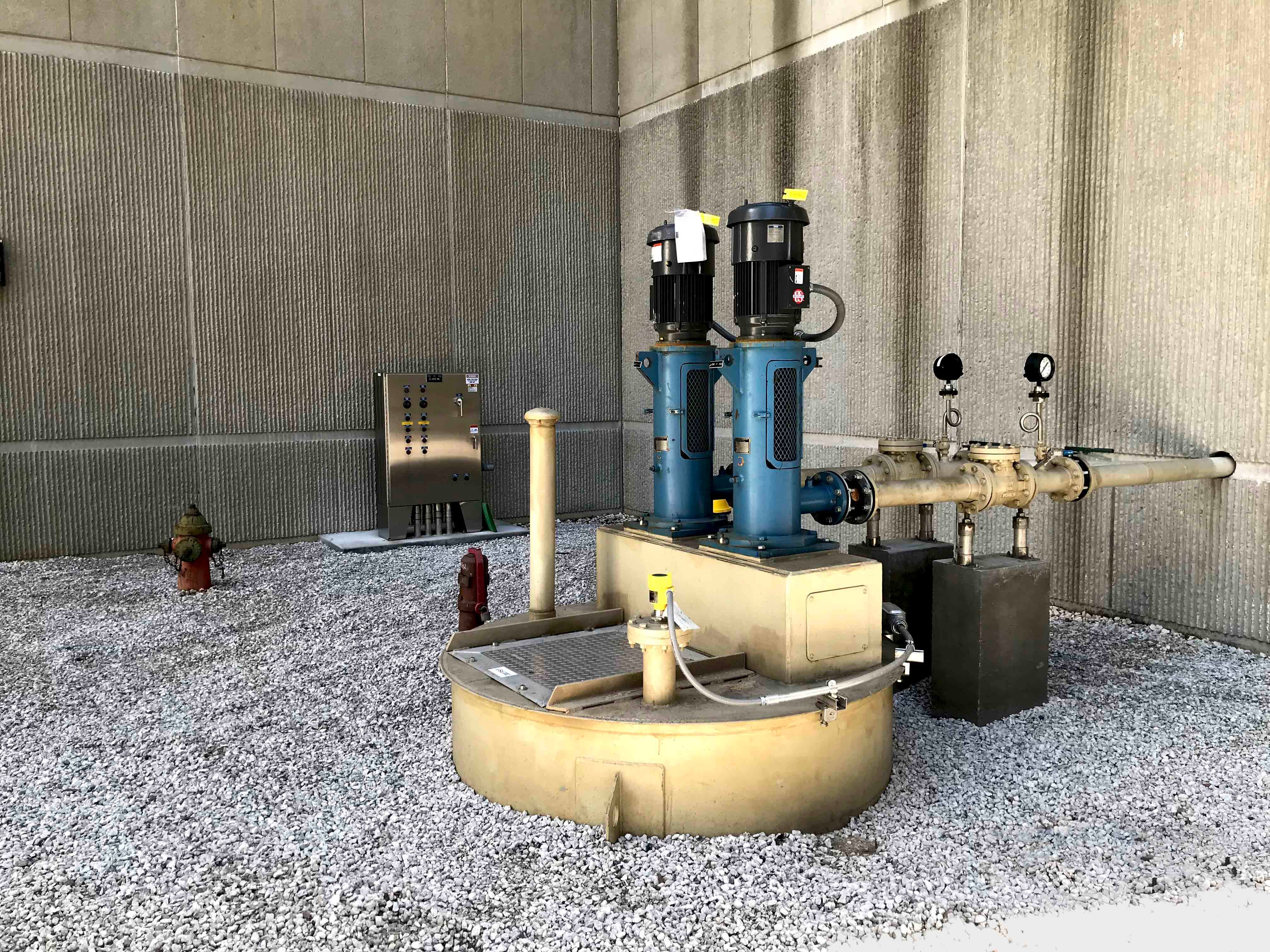

Romtec Utilities used Goulds 10hp turbine pumps in a duplex configuration for one of the pump stations, while the other less powerful system uses duplex Goulds turbine pumps with a 5-stage bowl assembly.

Using turbine pumps mounted above the sump was an engineering decision due to the near boiling temperatures of the water that is being pumped. This also allowed the pumps to utilize effective and economical air cooling on the motors.

Between pumping cycles, blowdown water is stored inside a stainless-steel tank with an interior and exterior coating of Thermaline 450 for increased protection against hot water temperatures. A Vega pulse radar was selected for this industrial application for continuous level measurement for liquids inside the sump and is not affected by the presence of steam.

The design was completed using information provided by Worley Parsons, OUC’s engineering firm. This project took place over several years and was delivered in multiple phases over this timeline.

Once the system was delivered, it was installed by Irwin Industries, a contractor working for OUC. Romtec Utilities sent a field technician to Florida when each pump station was ready for start-up.

Other Projects:

Here are a few other examples of projects completed by Romtec Utilities in the Southeast:

Septic sewer system replacement lift station in Forsyth, Georgia.

Industrial process lift station in McIntosh, Alabama.

Low-cost stormwater pump station for Plantation Pipe Line Company.

Why Choose Romtec Utilities?

At Romtec Utilities, we don’t just build pump stations we build partnerships.
Our team of mechanical, electrical, and structural engineers works closely with clients to design systems that are:

• Custom-fit to each site’s requirements
• Built with high-quality components
• Installed with precision and care
• Supported with long-term reliability

Whether you're dealing with stormwater, wastewater, or industrial water systems, Romtec Utilities offers turnkey services that include everything from initial design to final installation.

Ready to get started?

Contact Romtec Utilities today to learn how we can support your next pump station project with expert design, manufacturing, and installation services.
